Composite Insulated Conservatory Roof Thermo Panels
Make Your Conservatory More Comfortable All Year Round
A conservatory should be a room you can enjoy throughout the year, but older glass and polycarbonate roofs can make that difficult. Excessive heat during sunny weather, cold temperatures through winter, glare and the sound of heavy rain can all limit how often the space gets used.
Window Doctor offers an alternative to replacing the entire conservatory roof. Composite Insulated Conservatory Roof Thermo Panels can be fitted in place of suitable existing glass or polycarbonate roof panels, providing a lightweight and highly insulated upgrade while retaining the compatible existing roof structure.
For many conservatories, this offers a practical and cost-effective way to create a quieter, more comfortable and more usable living space without the expense and disruption associated with a complete roof replacement.
Why Replace Glass or Polycarbonate with Insulated Panels?
Traditional conservatory roofing materials provide plenty of natural light, but their thermal and acoustic performance can leave a lot to be desired. Heat can build rapidly beneath the roof during warmer months, while the conservatory can lose heat quickly when temperatures fall. Glare, UV exposure and rain noise can create additional problems.
Our Composite Thermo Panels are designed differently. At the centre of each panel is a high-density XPS (extruded polystyrene) insulation core, protected by durable outer layers to create a strong yet lightweight panel.
When installed into a suitable existing conservatory roof, they can significantly improve the characteristics of the roof without unnecessarily replacing the complete structure.
Benefits of Composite Insulated Thermo Panels
Upgrading your conservatory roof with insulated panels can offer a number of advantages, including:
- Improved roof insulation and thermal performance
- More consistent temperatures during both warmer and colder weather
- Reduced noise from rainfall
- Less glare from direct sunlight
- Reduced UV exposure, helping to protect furniture and furnishings from fading
- Improved acoustic performance
- Resistance to changing weather conditions
- UV-resistant exterior surfaces
- Resistance to moisture and humidity
- Good impact resistance
- Lightweight construction without compromising durability
- A neat, contemporary finish
- A more economical option than replacing a complete conservatory roof in suitable installations
Professional Survey and Installation from Window Doctor
Not every conservatory roof is the same, which is why we assess the existing installation before recommending insulated panels.
A Window Doctor engineer can inspect the roof structure, existing glazing system and panel configuration to establish whether Composite Insulated Thermo Panels are an appropriate solution. If the existing system is compatible, the original glass or polycarbonate roof panels can then be removed and replaced with insulated panels manufactured to the required dimensions.
What Does the Installation Process Involve?
- Initial Survey & Measurements – We inspect the existing conservatory roof and glazing system and take the measurements required for the replacement panels.
- Removal of Existing Roof Panels – Where suitable, the existing glass or polycarbonate panels are carefully taken out of the roof system.
- Panels Prepared to Fit Your Conservatory – Thermo Panels are made to the dimensions required for the individual roof openings.
- Professional Fitting – The insulated panels are installed within the compatible existing conservatory roof system.
- Sealing & Weatherproofing – Relevant seals, joints and interfaces are checked and appropriately finished to help maintain a weather-resistant installation.
- Completion Check – Once installation is complete, the finished roof is inspected before the work is signed off.

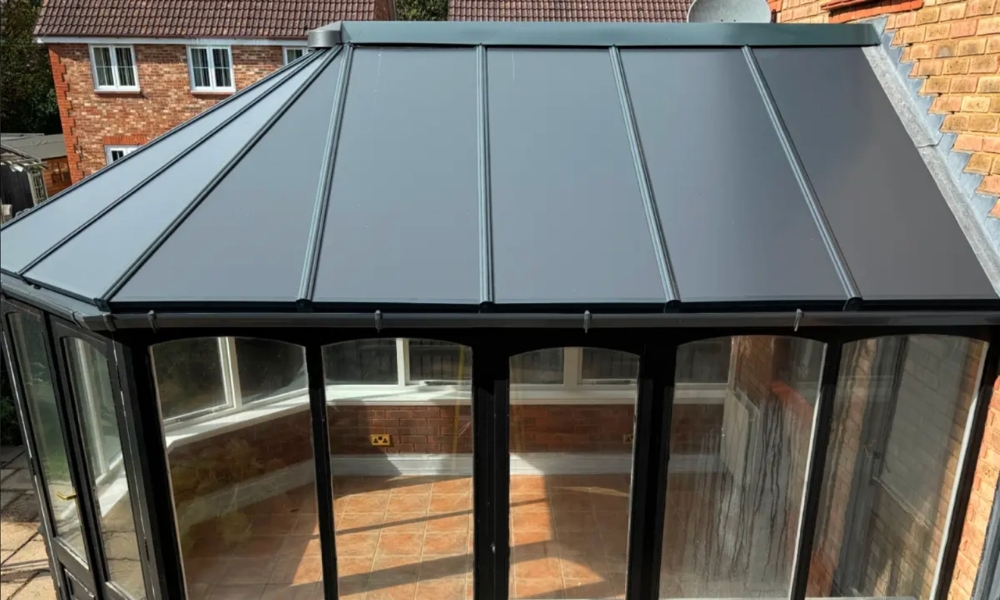

White or Colour-Matched Finishes
The standard option features a clean white PVC finish, providing a simple appearance that works well with many existing conservatory frames.
Where a different colour or style is required, selected panels can also be manufactured using RENOLIT architectural films applied to HPL (High-Pressure Laminate). A broad selection of colours and finishes is available, making it possible to coordinate the panels more closely with existing conservatory frames, windows and doors.
Specialist colours and finishes are subject to availability and may have different lead times.
How Are Composite Thermo Panels Constructed?
The combination of a durable outer surface and insulated XPS core provides the properties required for a lightweight, thermally efficient replacement panel.
PVC Outer Layer Specifications
- Density: 1.45 g/cm³ – ISO 1183
- Water absorption: 0.2% – DIN 53495
- Fire classification: C-s3,d0 – EN 13501-1
- Classification: B1 – DIN 4102-1
- Resistant to common household solvents and building materials, excluding abrasive materials
XPS Insulation Core Specifications
- Closed-cell extruded polystyrene construction
- Minimum density: 33 kg/m³ – EN 1602
- Thermal conductivity λ: 0.034 W/mK – EN 13164
- Fire classification: E – EN 13501-1
- Water absorption: <1% – EN 12087
Panel Thickness Options
Standard thicknesses include:
16mm | 25mm | 28mm | 32mm | 35mm
Other thicknesses may be available as a special-order option.
Panel availability will depend on the required dimensions and the specification and compatibility of the existing roof system.
Other Uses for Composite Insulated Panels
Although they provide an effective option for upgrading suitable conservatory roofs, Composite Insulated Thermo Panels aren’t limited to conservatories. Depending on the individual installation, insulated composite panels may also be suitable for:
- Window infill panels
- Door infill panels
- Double-glazing replacement applications
- Caravan and motorhome insulation
- Garages and outbuildings
- Container conversion projects
- Balustrade infill panels
- Internal or external wall and ceiling panel applications
- Commercial building projects
Requirements vary considerably between applications, so suitability should always be assessed for the individual project.
Conservatory Roof Upgrades Across the UK
Window Doctor provides professional window, door, glazing and conservatory repair and installation services through our nationwide network.
Our approach isn’t to recommend complete replacement where it isn’t necessary. We start by looking at what is already there. If the existing conservatory and roof system are suitable for an effective professional upgrade, we’ll explain the available options and recommend an appropriate solution.
Composite Insulated Thermo Panels can provide an excellent example of this approach: retaining a suitable existing roof structure while upgrading the panels that affect the comfort, insulation and usability of the conservatory.
Could Insulated Thermo Panels Work for Your Conservatory?
If you’re considering upgrading an existing conservatory roof, get in touch with Window Doctor.
You can send us photographs of your current conservatory or arrange a professional survey. We’ll assess the existing roof and glazing system, take the measurements required and determine whether insulated Thermo Panels are suitable for your conservatory.
We’ll then provide a free quotation for the supply and professional installation of your new insulated conservatory roof panels.

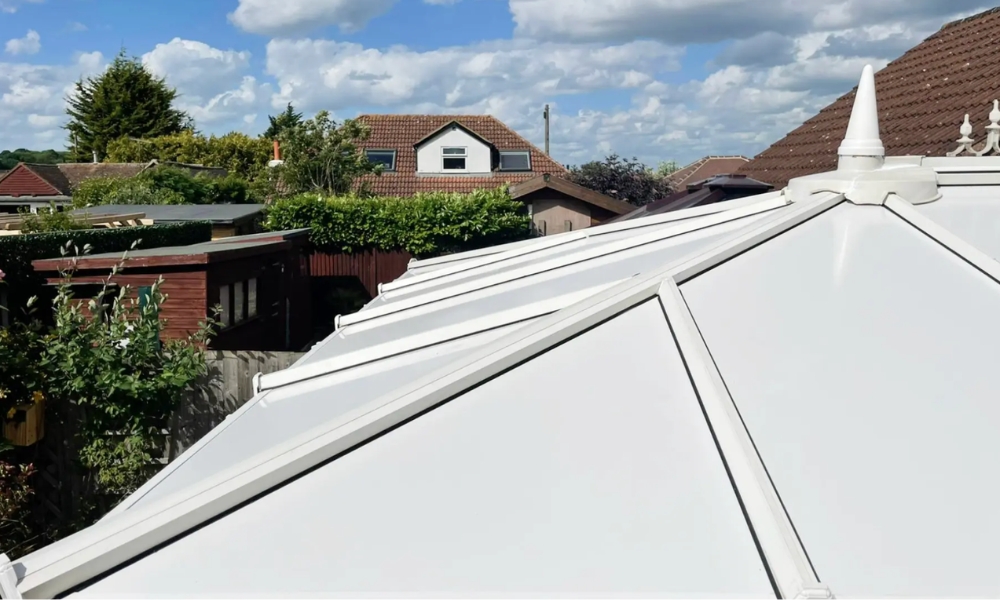

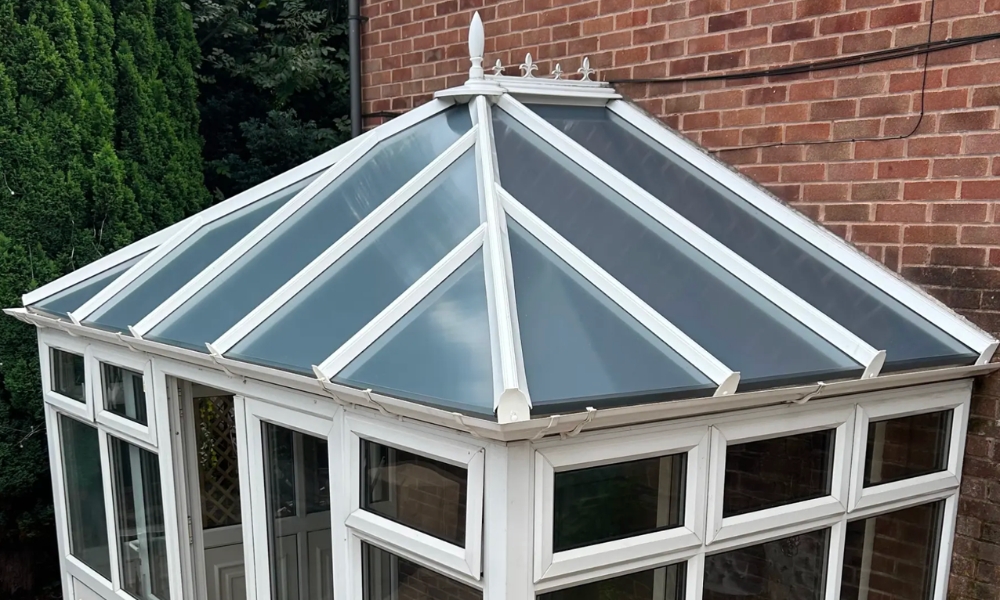

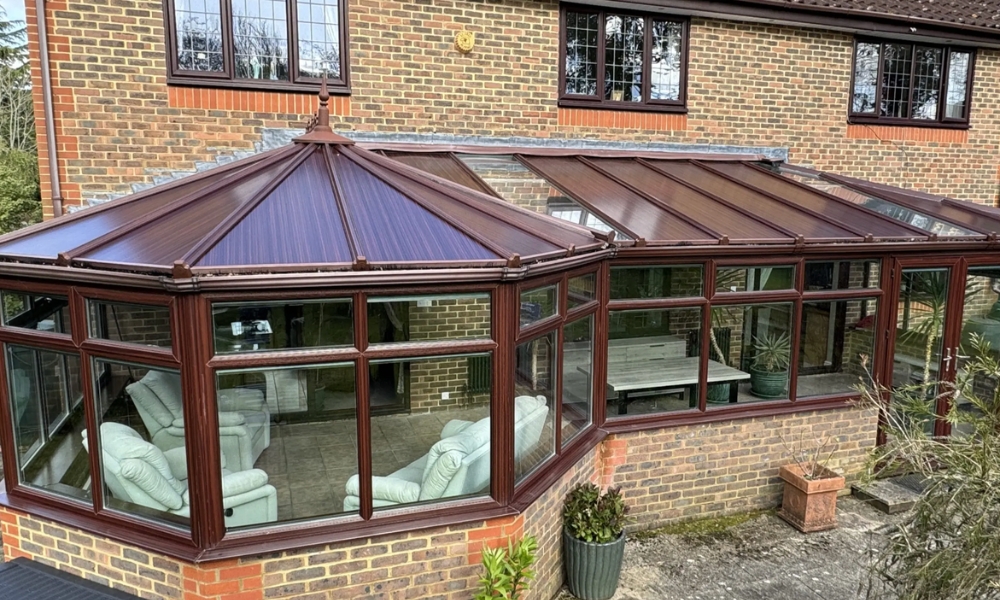

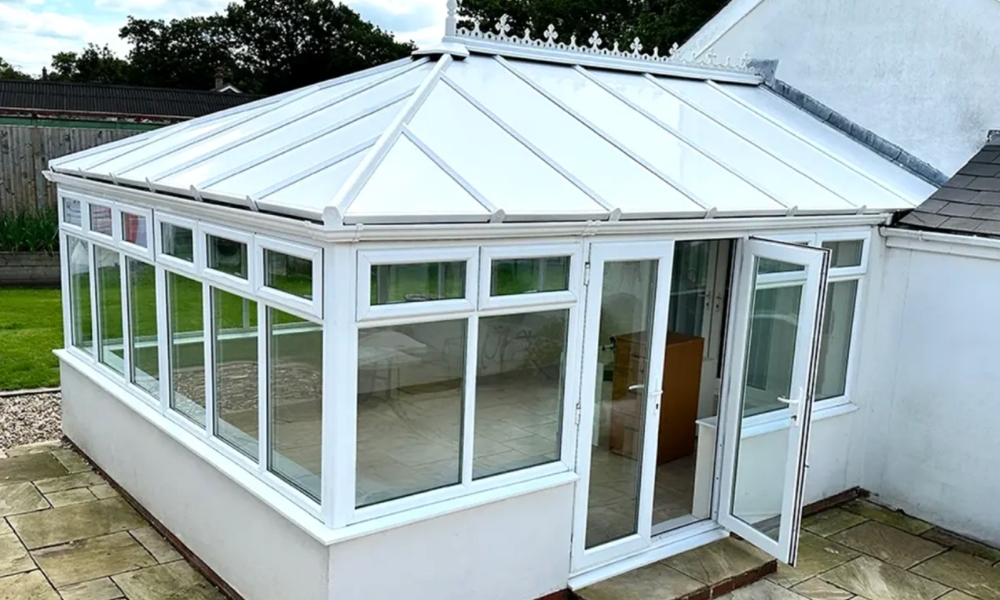

Recent Composite Insulated Conservatory Roof Thermo Panel Installations
Frequently Asked Questions – FAQs
What are composite insulated conservatory roof thermo panels?
Thermo panels are insulated composite panels designed to replace suitable existing sections of a conservatory roof. Rather than being transparent like glass or polycarbonate, they incorporate insulation to help reduce heat transfer through the roof.
Will insulated roof panels make my conservatory warmer in winter?
Insulated panels can improve the thermal performance of a suitable conservatory roof, helping reduce heat loss through the sections where they’re installed. Overall room temperature will also be influenced by the rest of the conservatory, including its glazing, frames, doors, heating and ventilation.
Can thermo panels help stop my conservatory getting too hot in summer?
They can help reduce the amount of direct solar heat entering through the sections of roof where the insulated panels replace transparent glazing or polycarbonate. This can help make the conservatory more comfortable during sunny weather, although overall temperatures will depend on the complete conservatory and its exposure.
Can you replace individual conservatory roof panels?
Depending on the design and condition of the existing conservatory roof, individual sections may be replaceable without changing the entire roof. An engineer can inspect the existing system and determine what options are suitable.
Do I need a completely new conservatory roof to improve its insulation?
Not necessarily. If the existing conservatory and roof structure remain suitable, replacing selected roof panels with insulated composite panels may provide a more targeted solution. Window Doctor can assess the existing installation before recommending the appropriate approach.
